Aot100 Factory Medical Electric Surgical Hydraulic Lift Operating Table
AOT100 Factory Medical Electric Surgical Hydraulic Lift Operating TableAOT100 as an advanced automatic operating table,it can meet various requirement of operations. Tabletop is X-ray available.Extremely low tabletop,especially suitable for cerebral surgery. Engineered for increasingly complex surgi......
Send Inquiry
Product Description
AOT100 as an advanced automatic operating table,it can meet various requirement of operations. Tabletop is X-ray available.Extremely low tabletop,especially suitable for cerebral surgery. Engineered for increasingly complex surgical scenes, AOT100 comes with intelligent automatic control system satisfying various demands of general surgeries.Detachable head plate ensure the table can be use with the head stock.
Features
--520 mm minimum and 820 mm maximum heights for comfortable working, both seated and standing
--Memory pad with antistatic, waterproof design
--Optional Battery power for 50-80 operations
Details
1. leg plate:imported gas spring for easy controls
2. Two joint head plate
3. Built-in kidney bridge
Extreme minimum height 520
model site | Length | Width | Tabletop lowest height | Elevation range |
AOT100 | ≥2085mm | ≥550mm | ≤520mm | 300mm |

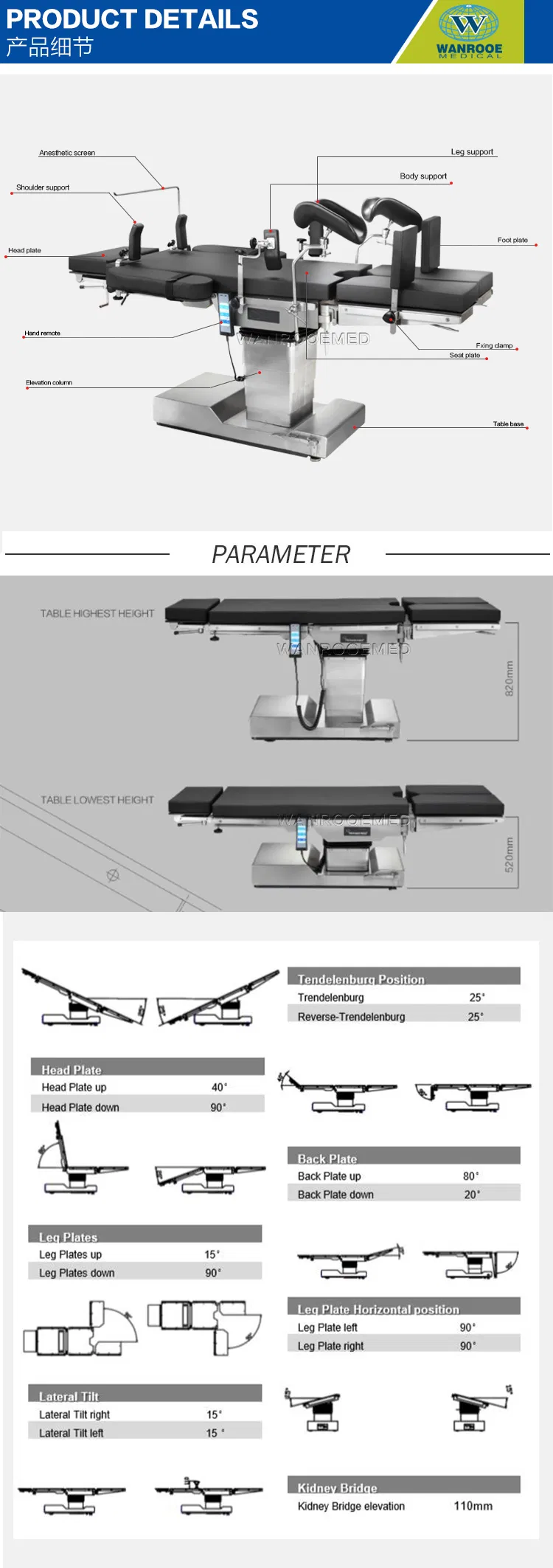

Movements | Model:AOT100 | |
Tabletop trendelenburg | Reverse trendelenburg | ≥25° |
Trendelenburg | ≥25° | |
Lateral tilt (left and right) | ≥15° | |
Head plate | Up | ≥40° |
down | ≥90° | |
Back plate | up | ≥80° |
down | ≥20° | |
Leg plate | up | ≥15° |
down | ≥90° | |
outward | ≥90° | |
Kidney bridge elevation | 111mm | |
Standard Accessories
Anesthetic Screen 1 Piece
Kidney Bridge Handle 1 Piece
Shouder Support 1 Pair
Body Support 1 Pair
Arm Support 1 Pair
Long Fixing Clamp 1 Pair
Leg Support 1 Pair
Foot Support 1 Pair
Fixing Clamp 8 Pieces
Hand Remote 1 Piece
Mattress 1 Set
Power Line 1 Piece
Details:
