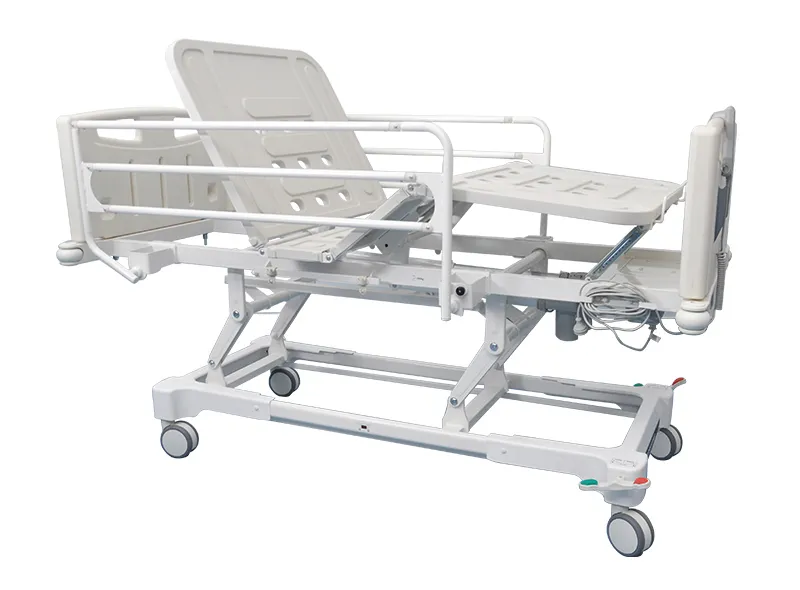

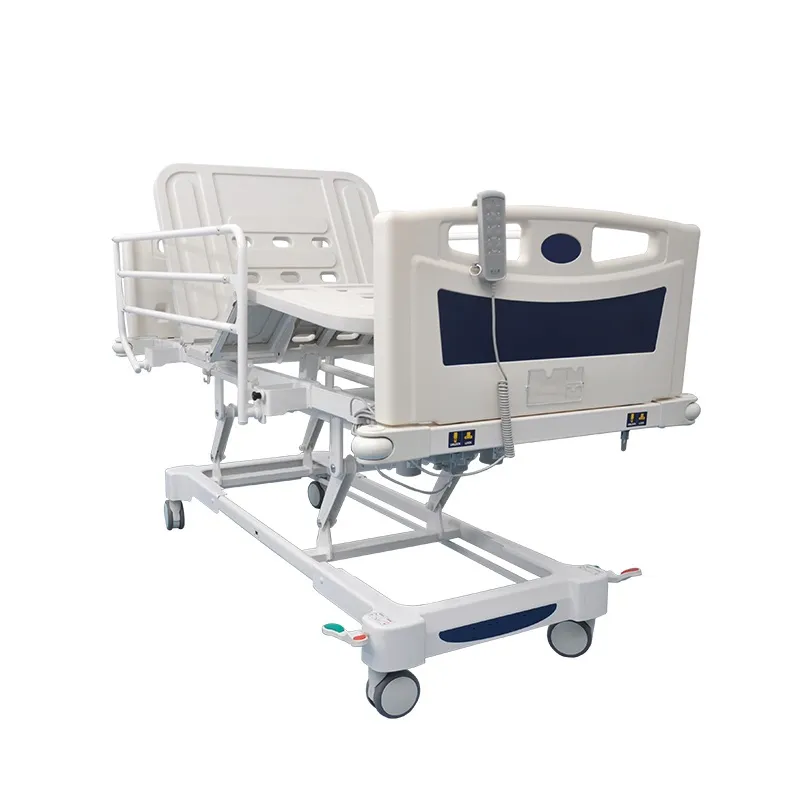

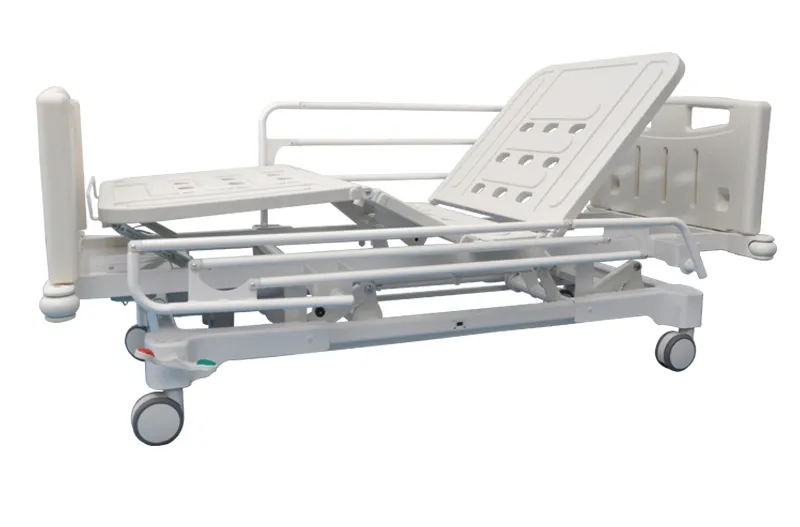

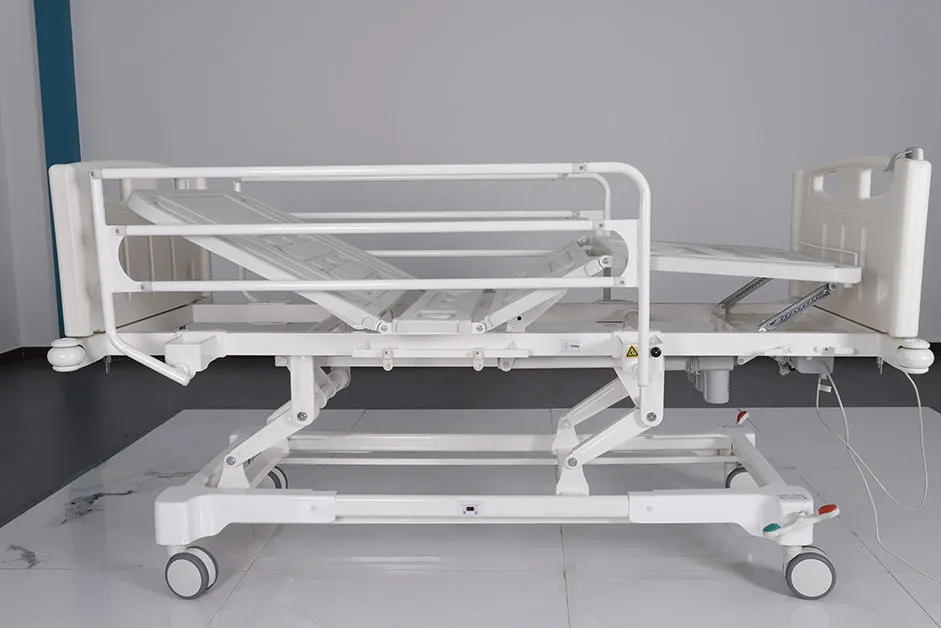

Durable Central-Controlled Three Functions Electric Care Hospital Bed

Specification:
Model: SH-D04-3z
Back section up and down: ≥70°
Leg section up and down: ≥40°
Hi-lo adjustable: 560-850mm
Trendelenburg/ reverse trendelenburg: ≥10°
Side tilt angle: ≥13°
Max loading weight: 200kg
Dimension: 2140x1100x440-750mm
Weight: 120kg

Function:
1. Back Section Up & Down
2. Leg Section Up & Down
3. Hi-Lo adjustment


Optional configuration
Mattress
Over bed table
oddment shelf

Main Parts:
1. ABS Side Rails: The 4pcs PP side rails with operating button not only provide the patient with protection against falls but also user can operate body position according to users requirement.

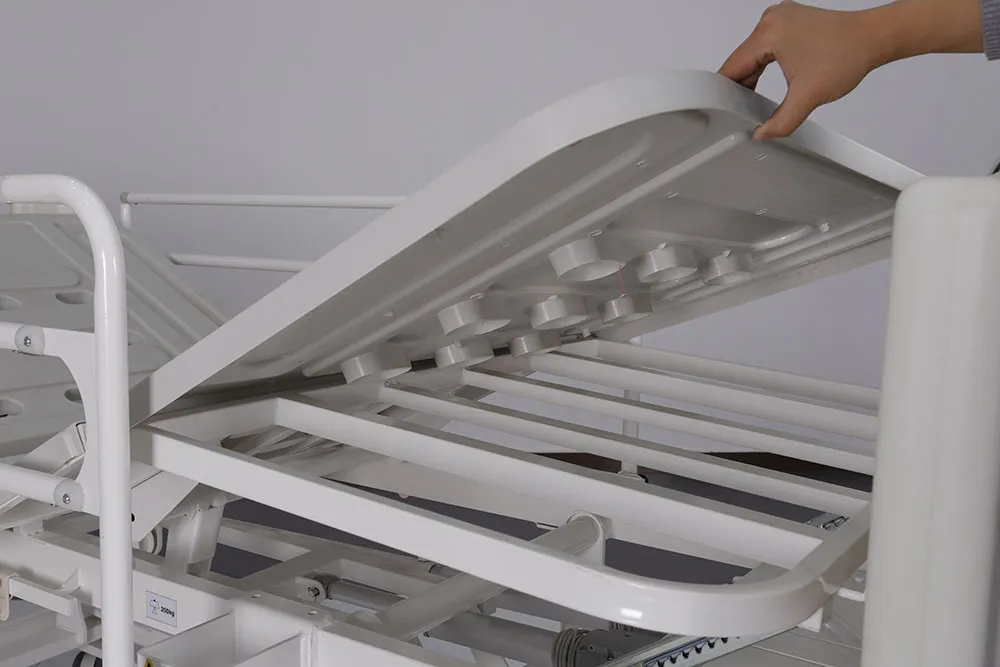

2. Best back Platform board: it can do X-ray imaging available, so user can do X-ray without changing the bed.
4. Protective corner bumpers
5. Lifting pole or infusion stand holes
6. Mattress holders
7. Angle Indicator: The angle gauges of side rails in the head and foot direction show the angles of the backrest and the tilt of the whole bed mattress platform respectively.
8. Extension of the bed: The integrated bed extension adjusts the mattress platform length to the individual patient's height.
9. Four 125mm castors with central locking system
10. Manual CPR: The electric CPR is equipped with damping device, which can let the back rest fall down slowly to ensure the safety of the patient when the power is off, the whole process can be single hand operation.
11. LED Soft light

Package:
Standard configuration
1 pair of head & foot board
ABS bed platform
1 pair of patient guardrail
3 pcs Linear Actuators
4 pcs Dia.125mm castors with central locking
4 pcs Drainage hook
Backup battery optional
UPS(24v)

Material:
1. The bed upper adopts a 40×80 square tube with a thickness of 1.2mm, and 4 drainage hooks are added on both sides of the bed upper, which can place multiple drainage bags at the same time. The bed surface adopts a stamped panel with a thickness of 1.2mm. The bed connecting parts are all made of thick-walled pipes above 2.75mm or 3mm cold plate stamping.

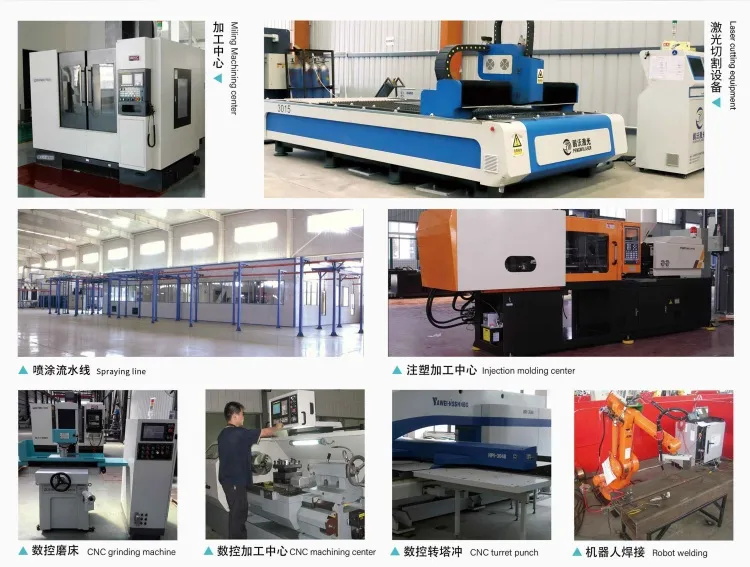

2. Welding process
The robot is used for flat and full welding, the welding is firm, and the welding place is smooth and durable.
3. Bed spraying process:
The surface of the bed body is made by electrostatic spraying after sandblasting with steel shots to remove rust. The bed body is coated with antistatic powder, which is resistant to acid and alkali corrosion and fading.
